Pantalla 15.6" led slim matte HD 1366x768 40 pins LVDS BR 360x205mm con anclajes

DIAGONAL DE PANTALLA : 15.6"
TECNOLOGÍA DE PANTALLA : led (slim - thin)
SUPERFICIE DE LA PANTALLA : acabado "matte" (opaca)
RESOLUCIÓN DE DISEÑO : HD (1366x768)

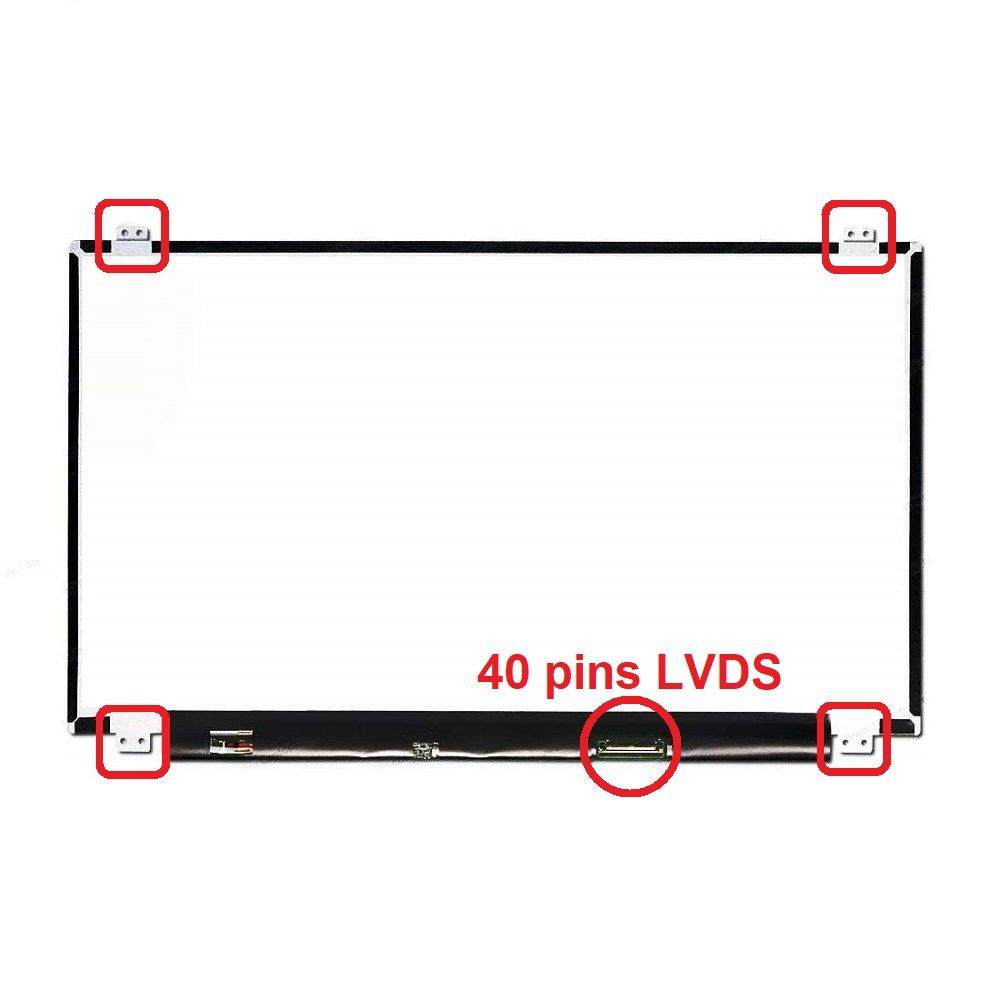

TIPO DE CONECTOR : 40 pins LVDS
UBICACIÓN DEL CONECTOR : Abajo a la derecha (bottom right)
DIMENSIONES DEL PANEL LED : 360mm x 205mm
DIMENSIONES DE LA PANTALLA : 360mm x 215mm
ANCLAJES : si (con anclajes arriba y abajo)

Pantalla compatible 15.6" led thin matte 40 pins HD 1366x768 WXGA
Referencia proporcionada por el fabricante : SCR.156.007 04X1105

Pantalla compatible Acer Travelmate 6594 series
Pantalla compatible Acer Travelmate 6594E series
Pantalla compatible Acer Travelmate 6594EG series
Pantalla compatible Acer Travelmate 6595 series
Pantalla compatible Acer Travelmate 6595G series
Pantalla compatible Acer Travelmate 6595T series
Pantalla compatible Acer Travelmate 6595TG series

Pantalla compatible Acer Travelmate 8531 series
Pantalla compatible Acer Travelmate 8531G series
Pantalla compatible Acer Travelmate 8571 series
Pantalla compatible Acer Travelmate 8571G series
Pantalla compatible Acer Travelmate 8572 series
Pantalla compatible Acer Travelmate 8572G series
Pantalla compatible Acer Travelmate 8572T series
Pantalla compatible Acer Travelmate 8572TG series
Pantalla compatible Acer Travelmate 8572Z series
Pantalla compatible Acer Travelmate 8573 series
Pantalla compatible Acer Travelmate 8573G series
Pantalla compatible Acer Travelmate 8573T series
Pantalla compatible Acer Travelmate 8573TG series
Pantalla compatible Acer Travelmate 8573Z series

Pantalla compatible Acer Travelmate P653-M (TMP653-M) series
Pantalla compatible Acer Travelmate P653-MG (TMP653-MG) series
Pantalla compatible Acer Travelmate P653-V (TMP653-V) series

Pantalla compatible Gateway NO51I series
Pantalla compatible Gateway NO51IE series
Pantalla compatible Gateway NO51IG series

Pantalla compatible Gateway NS51C series
Pantalla compatible Gateway NS51I series
Pantalla compatible Gateway NS51IG series

Pantalla compatible Lenovo Ideapad E531 series
Pantalla compatible Lenovo Ideapad Z500 (Model Name 20202)

Pantalla compatible Lenovo Thinkpad Edge E531

Pantalla compatible HP Probook 450 G1

Pantalla compatible HP 250 G3 Notebook PC

Pantalla compatible HP 350 G1 Notebook PC
Pantalla compatible HP 355 G1 Notebook PC
Pantalla compatible HP 350 G2 Notebook PC
Pantalla compatible HP 355 G2 Notebook PC

Pantalla compatible Toshiba Tecra A50-A-13Z
Pantalla compatible Toshiba Tecra A50-A-15X
Pantalla compatible Toshiba Tecra A50-A-175

Compatible con los siguientes part numbers y referencias :

LK.15608.004 LCD PANEL.LED.15.6".WXGA.LG.LF SCR.156.007 LP156WH3-TLB1
LK.15608.010 LCD PANEL.LED.15.6".WXGA.LG.LF SCR.156.007 LP156WH3-TLM1
LK.15605.017 LCD PANEL.LED.15.6".WXGA.AU.LF SCR.156.007 B156XW04 V1
LK.15605.022 LCD PANEL.LED.15.6.WXGA.NGL SCR.156.007 B156XW04 V6
LK.15608.017 LCD PANEL.LED.15.6"WXGA.NGL.LG SCR.156.007 LP156WH3-TLBA
LK.15605.006 LCD PANEL.LED.15.6".WXGA.AU.LF SCR.156.007 B156XW03 V2
LK.15606.011 LCD PANEL.LED.15.6".WXGA.SAM SCR.156.007 LTN156AT11-001

B156XW04 V6 B156XW04_V6 B156XW04 V.6 B156XW04-V6

LTN156AT29-401 LTN156AT29 401
LTN156AT29-H01 LTN156AT29 H01
LTN156AT30-B01 LTN156AT30 B01
LTN156AT30-601 LTN156AT30 601
LTN156AR33-001 LTN156AR33 001
LTN156AT35-601 LTN156AT35 601

LP156WH3(TL)(T1) LP156WH3 (TL)(T1) LP156WH3_TL_T1 LP156WH3_TLT1 LP156WH3-TLT1 LP156WH3 TL T1
LP156WHB(TL)(D2) LP156WHB (TL)(D2) LP156WHB_TL_D2 LP156WHB_TLD2 LP156WHB-TLD2 LP156WHB TL D2

750635-001 (HP) LP156WH3-TLT1 LP156WH3 (TL)(T1)
797440-001 (HP) LTN156AT35-H01
761684-001 (HP)
788474-001 (HP)
