| General |
Prestación |
|

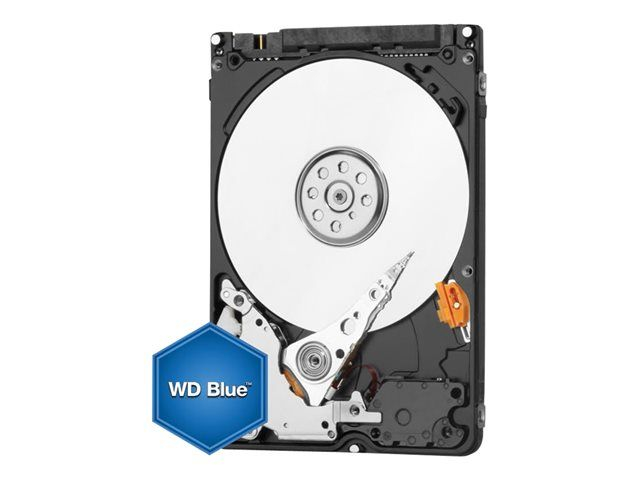

Tipo de dispositivo: Disco duro - interno
Capacidad: 500 GB
Factor de forma: 2.5"
Interfaz: SATA 6Gb/s
Tamaño de búfer: 16 MB
Características: Tecnología de carga de rampa NoTouch, tecnología Advanced Format , S.M.A.R.T.
Anchura: 69.85 mm
Profundidad: 100.2 mm
Altura: 7 mm
Peso: 90 g
|
Índice de transferencia de la unidad: 600 MBps (externo)
Tasa de datos internos: 147 MBps
Latencia media: 5.5 ms
Velocidad del eje: 5400 rpm
|
| Fiabilidad |
Expansión y conectividad |
|
Errores irreversibles: 1 por 10^14
Ciclos de inicio / parada: 600,000
|
Interfaces: 1 x SATA 6 Gb/s - Serie ATA de 7 patillas
Compartimentos compatibles: 1 x interna - 2.5"
|
| Alimentación |
Diverso |
|
Consumo eléctrico: 1.4 vatios ( lectura ) ¦ 1.4 vatios ( escritura ) ¦ 0.55 vatios ( en espera ) ¦ 0.16 vatios ( en espera ) ¦ 0.16 vatios ( dormido )
|
Cumplimiento de normas: RoHS, NMB-3 Class B, CAN ICES-3 Class B
|
| Garantía del fabricante |
Parámetros de entorno |
|
Servicio y mantenimiento: 2 años de garantía
Detalles de Servicio y Mantenimiento: Garantía limitada - 2 años
|
Temperatura mínima de funcionamiento: 0 °C
Temperatura máxima de funcionamiento: 60 °C
Tolerancia a golpes (operativo): 400 g @ 2 ms
Tolerancia a golpes (no operativo): 1000 g @ 2 ms
Emisión de sonido: 17 dBA
|
IMPORTANTE : Solo para ser utilizado en los modelos del siguiente listado cuyo disco duro original tenga una altura de 7mm.
Disco duro 500GB (7mm) Acer Aspire 3750 series
Disco duro 500GB (7mm) Acer Aspire 3750G series
Disco duro 500GB (7mm) Acer Aspire 3750Z series
Disco duro 500GB (7mm) Acer Aspire 3750ZG series
Disco duro 500GB (7mm) Acer Aspire 4250 series
Disco duro 500GB (7mm) Acer Aspire 4349 series
Disco duro 500GB (7mm) Acer Aspire 4743 series
Disco duro 500GB (7mm) Acer Aspire 4743G series
Disco duro 500GB (7mm) Acer Aspire 4749 series
Disco duro 500GB (7mm) Acer Aspire 4749Z series
Disco duro 500GB (7mm) Acer Aspire 4750Z series
Disco duro 500GB (7mm) Acer Aspire 4755 series
Disco duro 500GB (7mm) Acer Aspire 4755G series
Disco duro 500GB (7mm) Acer Aspire 5333 series
Disco duro 500GB (7mm) Acer Aspire 5349 series
Disco duro 500GB (7mm) Acer Aspire 5560 series
Disco duro 500GB (7mm) Acer Aspire 5560_V3 series
Disco duro 500GB (7mm) Acer Aspire 5560G series
Disco duro 500GB (7mm) Acer Aspire 5733 series
Disco duro 500GB (7mm) Acer Aspire 5733Z series
Disco duro 500GB (7mm) Acer Aspire 5749 series
Disco duro 500GB (7mm) Acer Aspire 5749Z series
Disco duro 500GB (7mm) Acer Aspire 5755 series
Disco duro 500GB (7mm) Acer Aspire 5755G series
Disco duro 500GB (7mm) Acer Aspire 5951G series
Disco duro 500GB (7mm) Acer Aspire 7250 series
Disco duro 500GB (7mm) Acer Aspire 7250G series
Disco duro 500GB (7mm) Acer Aspire 7339 series
Disco duro 500GB (7mm) Acer Aspire 7560 series
Disco duro 500GB (7mm) Acer Aspire 7739 series
Disco duro 500GB (7mm) Acer Aspire 7739G series
Disco duro 500GB (7mm) Acer Aspire 7739Z series
Disco duro 500GB (7mm) Acer Aspire 7739ZG series
Disco duro 500GB (7mm) Acer Aspire E1-410 series
Disco duro 500GB (7mm) Acer Aspire E1-410G series
Disco duro 500GB (7mm) Acer Aspire E1-421 series
Disco duro 500GB (7mm) Acer Aspire E1-421G series
Disco duro 500GB (7mm) Acer Aspire E1-422 series
Disco duro 500GB (7mm) Acer Aspire E1-422G series
Disco duro 500GB (7mm) Acer Aspire E1-430 series
Disco duro 500GB (7mm) Acer Aspire E1-430G series
Disco duro 500GB (7mm) Acer Aspire E1-430P series
Disco duro 500GB (7mm) Acer Aspire E1-431 series
Disco duro 500GB (7mm) Acer Aspire E1-431G series
Disco duro 500GB (7mm) Acer Aspire E1-432 series
Disco duro 500GB (7mm) Acer Aspire E1-432G series
Disco duro 500GB (7mm) Acer Aspire E1-432P series
Disco duro 500GB (7mm) Acer Aspire E1-451 series
Disco duro 500GB (7mm) Acer Aspire E1-451G series
Disco duro 500GB (7mm) Acer Aspire E1-470 series
Disco duro 500GB (7mm) Acer Aspire E1-470G series
Disco duro 500GB (7mm) Acer Aspire E1-470P series
Disco duro 500GB (7mm) Acer Aspire E1-470PG series
Disco duro 500GB (7mm) Acer Aspire E1-471 series
Disco duro 500GB (7mm) Acer Aspire E1-471G series
Disco duro 500GB (7mm) Acer Aspire E1-472 series
Disco duro 500GB (7mm) Acer Aspire E1-472G series
Disco duro 500GB (7mm) Acer Aspire E1-472P series
Disco duro 500GB (7mm) Acer Aspire E1-510 series
Disco duro 500GB (7mm) Acer Aspire E1-510P series
Disco duro 500GB (7mm) Acer Aspire E1-521 series
Disco duro 500GB (7mm) Acer Aspire E1-522 series
Disco duro 500GB (7mm) Acer Aspire E1-530 series
Disco duro 500GB (7mm) Acer Aspire E1-530G series
Disco duro 500GB (7mm) Acer Aspire E1-531 series
Disco duro 500GB (7mm) Acer Aspire E1-531G series
Disco duro 500GB (7mm) Acer Aspire E1-532 series
Disco duro 500GB (7mm) Acer Aspire E1-532G series
Disco duro 500GB (7mm) Acer Aspire E1-532P series
Disco duro 500GB (7mm) Acer Aspire E1-570 series
Disco duro 500GB (7mm) Acer Aspire E1-570G series
Disco duro 500GB (7mm) Acer Aspire E1-571 series
Disco duro 500GB (7mm) Acer Aspire E1-571G series
Disco duro 500GB (7mm) Acer Aspire E1-572 series
Disco duro 500GB (7mm) Acer Aspire E1-572G series
Disco duro 500GB (7mm) Acer Aspire E1-572P series
Disco duro 500GB (7mm) Acer Aspire E1-572PG series
Disco duro 500GB (7mm) Acer Aspire E1-731 series
Disco duro 500GB (7mm) Acer Aspire E1-731G series
Disco duro 500GB (7mm) Acer Aspire E1-732 series
Disco duro 500GB (7mm) Acer Aspire E1-732G series
Disco duro 500GB (7mm) Acer Aspire E1-771 series
Disco duro 500GB (7mm) Acer Aspire E1-771G series
Disco duro 500GB (7mm) Acer Aspire E1-772 series
Disco duro 500GB (7mm) Acer Aspire E1-772G series
Disco duro 500GB (7mm) Acer Aspire E5-511 series
Disco duro 500GB (7mm) Acer Aspire E5-511P series
Disco duro 500GB (7mm) Acer Aspire E5-521 series
Disco duro 500GB (7mm) Acer Aspire E5-521G series
Disco duro 500GB (7mm) Acer Aspire E5-531 series
Disco duro 500GB (7mm) Acer Aspire E5-531G series
Disco duro 500GB (7mm) Acer Aspire E5-551 series
Disco duro 500GB (7mm) Acer Aspire E5-551G series
Disco duro 500GB (7mm) Acer Aspire E5-571 series
Disco duro 500GB (7mm) Acer Aspire E5-571G series
Disco duro 500GB (7mm) Acer Aspire E5-571P series
Disco duro 500GB (7mm) Acer Aspire E5-572 series
Disco duro 500GB (7mm) Acer Aspire E5-572G series
Disco duro 500GB (7mm) Acer Aspire E5-572P series
Disco duro 500GB (7mm) Acer Aspire E5-721 series
Disco duro 500GB (7mm) Acer Aspire ES1-511 series
Disco duro 500GB (7mm) Acer Aspire M3-581G series
Disco duro 500GB (7mm) Acer Aspire M3-581PG series
Disco duro 500GB (7mm) Acer Aspire M3-581PT series
Disco duro 500GB (7mm) Acer Aspire M3-581T series
Disco duro 500GB (7mm) Acer Aspire M3-581TG series
Disco duro 500GB (7mm) Acer Aspire M3-581PTG series
Disco duro 500GB (7mm) Acer Aspire M5-481 series
Disco duro 500GB (7mm) Acer Aspire M5-481G series
Disco duro 500GB (7mm) Acer Aspire M5-481PG series
Disco duro 500GB (7mm) Acer Aspire M5-481PT series
Disco duro 500GB (7mm) Acer Aspire M5-481T series
Disco duro 500GB (7mm) Acer Aspire M5-481TG series
Disco duro 500GB (7mm) Acer Aspire M5-481PTG series
Disco duro 500GB (7mm) Acer Aspire M5-581 series
Disco duro 500GB (7mm) Acer Aspire M5-581G series
Disco duro 500GB (7mm) Acer Aspire M5-581PT series
Disco duro 500GB (7mm) Acer Aspire M5-581T series
Disco duro 500GB (7mm) Acer Aspire M5-581TG series
Disco duro 500GB (7mm) Acer Aspire M5-583P series
Disco duro 500GB (7mm) Acer Aspire R7-571 series
Disco duro 500GB (7mm) Acer Aspire R7-571G series
Disco duro 500GB (7mm) Acer Aspire R7-572 series
Disco duro 500GB (7mm) Acer Aspire R7-572G series
Disco duro 500GB (7mm) Acer Aspire S3-331 series
Disco duro 500GB (7mm) Acer Aspire S3-371 series
Disco duro 500GB (7mm) Acer Aspire S3-391 series
Disco duro 500GB (7mm) Acer Aspire S3-392 series
Disco duro 500GB (7mm) Acer Aspire S3-392G series
Disco duro 500GB (7mm) Acer Aspire S3-951 series
Disco duro 500GB (7mm) Acer Aspire V3-531 series
Disco duro 500GB (7mm) Acer Aspire V3-531G series
Disco duro 500GB (7mm) Acer Aspire V3-571 series
Disco duro 500GB (7mm) Acer Aspire V3-571G series
Disco duro 500GB (7mm) Acer Aspire V3-572 series
Disco duro 500GB (7mm) Acer Aspire V3-572G series
Disco duro 500GB (7mm) Acer Aspire V3-572P series
Disco duro 500GB (7mm) Acer Aspire V3-572PG series
Disco duro 500GB (7mm) Acer Aspire V3-731 series
Disco duro 500GB (7mm) Acer Aspire V3-731G series
Disco duro 500GB (7mm) Acer Aspire V3-771 series
Disco duro 500GB (7mm) Acer Aspire V3-771G series
Disco duro 500GB (7mm) Acer Aspire V3-772 series
Disco duro 500GB (7mm) Acer Aspire V3-772G series
Disco duro 500GB (7mm) Acer Aspire V5-121 series
Disco duro 500GB (7mm) Acer Aspire V5-122P series
Disco duro 500GB (7mm) Acer Aspire V5-123 series
Disco duro 500GB (7mm) Acer Aspire V5-131 series
Disco duro 500GB (7mm) Acer Aspire V5-132 series
Disco duro 500GB (7mm) Acer Aspire V5-132P series
Disco duro 500GB (7mm) Acer Aspire V5-171 series
Disco duro 500GB (7mm) Acer Aspire V5-431 series
Disco duro 500GB (7mm) Acer Aspire V5-431G series
Disco duro 500GB (7mm) Acer Aspire V5-431P series
Disco duro 500GB (7mm) Acer Aspire V5-431PG series
Disco duro 500GB (7mm) Acer Aspire V5-452G series
Disco duro 500GB (7mm) Acer Aspire V5-452PG series
Disco duro 500GB (7mm) Acer Aspire V5-471 series
Disco duro 500GB (7mm) Acer Aspire V5-471G series
Disco duro 500GB (7mm) Acer Aspire V5-471P series
Disco duro 500GB (7mm) Acer Aspire V5-471PG series
Disco duro 500GB (7mm) Acer Aspire V5-472 series
Disco duro 500GB (7mm) Acer Aspire V5-472G series
Disco duro 500GB (7mm) Acer Aspire V5-472P series
Disco duro 500GB (7mm) Acer Aspire V5-472PG series
Disco duro 500GB (7mm) Acer Aspire V5-473 series
Disco duro 500GB (7mm) Acer Aspire V5-473G series
Disco duro 500GB (7mm) Acer Aspire V5-473P series
Disco duro 500GB (7mm) Acer Aspire V5-473PG series
Disco duro 500GB (7mm) Acer Aspire V5-531 series
Disco duro 500GB (7mm) Acer Aspire V5-531G series
Disco duro 500GB (7mm) Acer Aspire V5-531P series
Disco duro 500GB (7mm) Acer Aspire V5-551 series
Disco duro 500GB (7mm) Acer Aspire V5-551G series
Disco duro 500GB (7mm) Acer Aspire V5-552 series
Disco duro 500GB (7mm) Acer Aspire V5-552G series
Disco duro 500GB (7mm) Acer Aspire V5-552P series
Disco duro 500GB (7mm) Acer Aspire V5-552PG series
Disco duro 500GB (7mm) Acer Aspire V5-561 series
Disco duro 500GB (7mm) Acer Aspire V5-561G series
Disco duro 500GB (7mm) Acer Aspire V5-561P series
Disco duro 500GB (7mm) Acer Aspire V5-561PG series
Disco duro 500GB (7mm) Acer Aspire V5-571 series
Disco duro 500GB (7mm) Acer Aspire V5-571G series
Disco duro 500GB (7mm) Acer Aspire V5-571P series
Disco duro 500GB (7mm) Acer Aspire V5-571PG series
Disco duro 500GB (7mm) Acer Aspire V5-572 series
Disco duro 500GB (7mm) Acer Aspire V5-572G series
Disco duro 500GB (7mm) Acer Aspire V5-572P series
Disco duro 500GB (7mm) Acer Aspire V5-572PG series
Disco duro 500GB (7mm) Acer Aspire V5-573 series
Disco duro 500GB (7mm) Acer Aspire V5-573G series
Disco duro 500GB (7mm) Acer Aspire V5-573P series
Disco duro 500GB (7mm) Acer Aspire V5-573PG series
Disco duro 500GB (7mm) Acer Aspire V7-481 series
Disco duro 500GB (7mm) Acer Aspire V7-481G series
Disco duro 500GB (7mm) Acer Aspire V7-481P series
Disco duro 500GB (7mm) Acer Aspire V7-481PG series
Disco duro 500GB (7mm) Acer Aspire V7-482 series
Disco duro 500GB (7mm) Acer Aspire V7-482G series
Disco duro 500GB (7mm) Acer Aspire V7-482P series
Disco duro 500GB (7mm) Acer Aspire V7-482PG series
Disco duro 500GB (7mm) Acer Aspire V7-581 series
Disco duro 500GB (7mm) Acer Aspire V7-581G series
Disco duro 500GB (7mm) Acer Aspire V7-581P series
Disco duro 500GB (7mm) Acer Aspire V7-581PG series
Disco duro 500GB (7mm) Acer Aspire V7-582 series
Disco duro 500GB (7mm) Acer Aspire V7-582G series
Disco duro 500GB (7mm) Acer Aspire V7-582P series
Disco duro 500GB (7mm) Acer Aspire V7-582PG series
Disco duro 500GB (7mm) Acer Extensa 2509 series
Disco duro 500GB (7mm) Acer Extensa 2510 series
Disco duro 500GB (7mm) Acer Extensa 2510G series
Disco duro 500GB (7mm) Acer Travelmate 4750G series
Disco duro 500GB (7mm) Acer Travelmate 5760 series
Disco duro 500GB (7mm) Acer Travelmate 6495T series
Disco duro 500GB (7mm) Acer Travelmate 7750 series
Disco duro 500GB (7mm) Acer Travelmate 7750Z series
Disco duro 500GB (7mm) Acer Travelmate 8473 series
Disco duro 500GB (7mm) Acer Travelmate 8473T series
Disco duro 500GB (7mm) Acer Travelmate 8481 series
Disco duro 500GB (7mm) Acer Travelmate 8481G series
Disco duro 500GB (7mm) Acer Travelmate 8481T series
Disco duro 500GB (7mm) Acer Travelmate 8481TG series
Disco duro 500GB (7mm) Acer Travelmate 8573T series
Disco duro 500GB (7mm) Acer Travelmate B113-E series
Disco duro 500GB (7mm) Acer Travelmate B113-M series
Disco duro 500GB (7mm) Acer Travelmate P243-M series
Disco duro 500GB (7mm) Acer Travelmate P243-MG series
Disco duro 500GB (7mm) Acer Travelmate P245-M series
Disco duro 500GB (7mm) Acer Travelmate P245-MG series
Disco duro 500GB (7mm) Acer Travelmate P245-MP series
Disco duro 500GB (7mm) Acer Travelmate P245-MPG series
Disco duro 500GB (7mm) Acer Travelmate P255-M series
Disco duro 500GB (7mm) Acer Travelmate P255-MG series
Disco duro 500GB (7mm) Acer Travelmate P255-MP series
Disco duro 500GB (7mm) Acer Travelmate P255-MPG series
Disco duro 500GB (7mm) Acer Travelmate P256-M series
Disco duro 500GB (7mm) Acer Travelmate P273-M series
Disco duro 500GB (7mm) Acer Travelmate P273-MG series
Disco duro 500GB (7mm) Acer Travelmate P633-M series
Disco duro 500GB (7mm) Acer Travelmate P633-V series
Disco duro 500GB (7mm) Acer Travelmate P645-M series
Disco duro 500GB (7mm) Acer Travelmate P645-MG series
Disco duro 500GB (7mm) Acer Travelmate P645-V series
Disco duro 500GB (7mm) Acer Travelmate P653-M series
Disco duro 500GB (7mm) Acer Travelmate P653-MG series
Disco duro 500GB (7mm) Acer Travelmate P653-V series
Disco duro 500GB (7mm) eMachines D443 series
Disco duro 500GB (7mm) eMachines E529 series
Disco duro 500GB (7mm) eMachines E729Z series
Disco duro 500GB (7mm) eMachines G443 series
Disco duro 500GB (7mm) eMachines G443G series
Disco duro 500GB (7mm) Gateway NV52L series
Disco duro 500GB (7mm) Gateway NV56R series
Disco duro 500GB (7mm) Gateway NV76R series
Disco duro 500GB (7mm) Packard Bell Easynote LE11BZ series
Disco duro 500GB (7mm) Packard Bell Easynote LK11BZ series
Disco duro 500GB (7mm) Packard Bell Easynote LV11HC series
Disco duro 500GB (7mm) Packard Bell Easynote LV44HC series
Disco duro 500GB (7mm) Packard Bell Easynote ME69BMP series
Disco duro 500GB (7mm) Packard Bell Easynote NS44HR series
Disco duro 500GB (7mm) Packard Bell Easynote NX69HR series
Disco duro 500GB (7mm) Packard Bell Easynote TE11BZ series
Disco duro 500GB (7mm) Packard Bell Easynote TE11HC series
Disco duro 500GB (7mm) Packard Bell Easynote TE69BM series
Disco duro 500GB (7mm) Packard Bell Easynote TE69BMP series
Disco duro 500GB (7mm) Packard Bell Easynote TE69CX series
Disco duro 500GB (7mm) Packard Bell Easynote TE69CXP series
Disco duro 500GB (7mm) Packard Bell Easynote TE69HW series
Disco duro 500GB (7mm) Packard Bell Easynote TE69KB series
Disco duro 500GB (7mm) Packard Bell Easynote TF71BM series
Disco duro 500GB (7mm) Packard Bell Easynote TK13BZ series
Disco duro 500GB (7mm) Packard Bell Easynote TV11CM series
Disco duro 500GB (7mm) Packard Bell Easynote TV11HC series
Disco duro 500GB (7mm) Packard Bell Easynote TV43CM series
Disco duro 500GB (7mm) Packard Bell Easynote TV43HC series
Disco duro 500GB (7mm) Packard Bell Easynote TV44CM series
Disco duro 500GB (7mm) Packard Bell Easynote TV44HC series
Disco duro 500GB (7mm) Acer Aspire One Happy 2 series
Disco duro 500GB (7mm) Acer Aspire One 722 series
Disco duro 500GB (7mm) Acer Aspire One 725 series
Disco duro 500GB (7mm) Acer Aspire One 756 series
Disco duro 500GB (7mm) Acer Aspire One D257 series
Disco duro 500GB (7mm) Acer Aspire One D270 series
Disco duro 500GB (7mm) eMachines 355 (EM355) series
Disco duro 500GB (7mm) Gateway LT28 series
Disco duro 500GB (7mm) Gateway LT40 series
Disco duro 500GB (7mm) Packard Bell DOT S C series
Disco duro 500GB (7mm) Packard Bell DOT S E3 series
Disco duro 500GB (7mm) Lenovo B40-30 series
Disco duro 500GB (7mm) Lenovo B40-45 series
Disco duro 500GB (7mm) Lenovo B40-70 series
Disco duro 500GB (7mm) Lenovo Ideapad S310 series
Disco duro 500GB (7mm) Lenovo Ideapad Y40-70 series
Disco duro 500GB (7mm) Lenovo Ideapad Y40-80 series
Disco duro 500GB (7mm) Lenovo Ideapad Y50-70 series
Disco duro 500GB (7mm) Lenovo Ideapad Y50-70 Touch series
Disco duro 500GB (7mm) Lenovo Ideapad Y50-80 series
Disco duro 500GB (7mm) Lenovo Ideapad Y50-80 Touch series
Disco duro 500GB (7mm) Lenovo Flex 14 series
Disco duro 500GB (7mm) Lenovo Flex 15 series
Disco duro 500GB (7mm) Lenovo Flex 2-14 series
Disco duro 500GB (7mm) Lenovo Flex 2-15 series
Compatible con las siguientes referencias y part numbers:
KH.50001.030 (KH5001030) HDD SEAGATE 2.5" 5400rpm 500GB 9WS142-188 ST500LT012
KH.50001.046 (KH5001046) HDD SEAGATE 2.5" 5400rpm 500GB ST500LT012, 1DG142-540
KH.50004.011 (KH5004011) HDD TOSHIBA 2.5" 5400rpm 500GB Aquarius-B,MQ01ABF050
KH.50007.016 (KH5007016) HDD HGST 2.5" 5400rpm 500GB HTS545050A7E380
KH.50007.017 (KH5007017) HDD HGST 2.5" 5400rpm 500GB Jaguar B 500G, HTS545050A7E380
KH.50007.023 (KH5007023) HDD HGST 2.5" 5400rpm 500GB HTS545050A7E380, Jaguar B7,0J23335
KH.50007.025 (KH5007025) HDD HGST 2.5" 5400rpm 500GB HTS545050A7E380,0J28305,Jaguar B7
KH.50007.027 (KH5007027) HDD HGST 2.5" 5400rpm 500GB HTS545050A7E680, Jaguarb7_RV
KH.50008.040 (KH5008040) HDD WD 2.5" 5400rpm 500GB WD5000LPVT-22G33T0, MN500S
KH.50008.044 (KH5008044) HDD WD 2.5" 5400rpm 500GB WD5000LPVX-22V0TT0, MN500S
ST500LT012 6G 7mm 5.4K 500G HDD 16200383 - 35011849
WD5000LPCX-24C6HT0 6G 7mm 5.4K 500G HDD 16200395 - 35016445
TSB MQ01ABF050 6G 7mm 5.4K 500G HDD 16200433 - 35018593
HTS545050A7E660 6G 7mm 5.4K 500G HDD 16200404 - 35010384
ST500LM000 6G 7mm 500G+8G SSHD 16200391 - 35010062
MN500Sh-2 7mm 500G+8G SSHD 16200680 - 35020670
MN500Mh-2 7mm 1TB+8G SSHD 16200681 - 35020671 |
Formulario de inicio de sesión y registro
